Ram Mount’s RAM-B-149Z-A-UN14W-V7M Quick-Grip Waterproof Wireless Charging Mount.

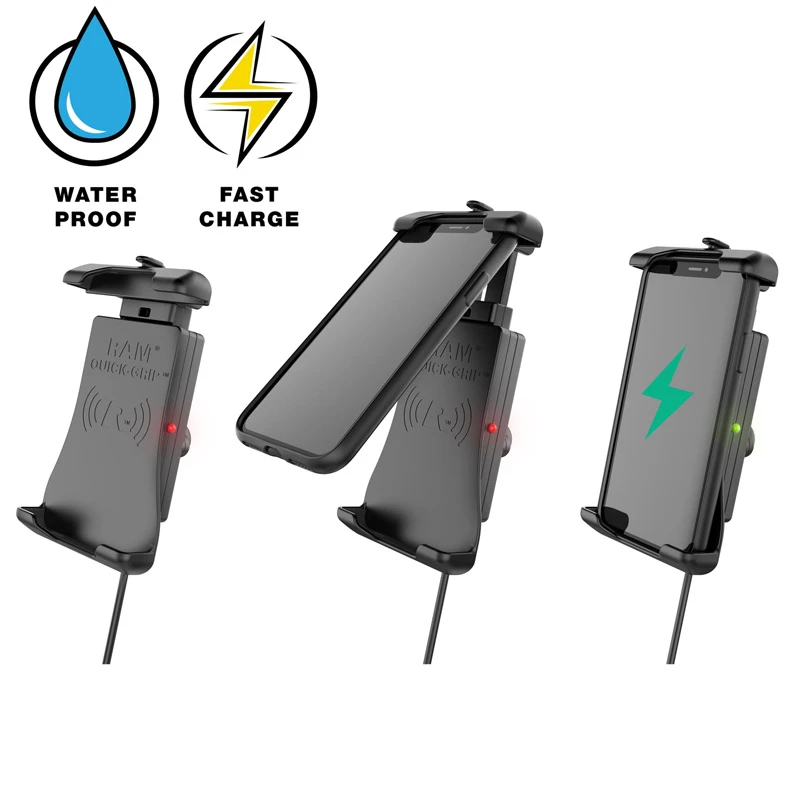

The RAM Quick-Grip Wireless is a patented, universal waterproof wireless charging cradle for phones. As part of the spring-loaded RAM Quick-Grip family, this cradle allows for single-handed placement and removal of your phone while taking advantage of Qi wireless phone charging. Both the top and bottom cups feature rubber to help hold your phone firmly in place. To insert your device, use your phone to push the top cup upward and then gently place your device against the cradle for a secure fit. This Qi compatible wireless charging cradle ensures your compatible phone charges as long as it’s within the listed compatible dimensions. For added security and peace of mind, a device tether is included that’s recommended for outdoor applications. This RAM Quick-Grip Wireless handlebar kit includes a B size diamond base featuring a 1″ rubber ball, short length double socket arm, and zinc-coated U-bolt base. U-bolt hardware accommodates rails from .5″ to 1.25″ in diameter. The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable. This kit includes a hardwire charger.

• Waterproof Qi compatible wireless phone charging cradle features spring-loaded RAM Quick-Grip design and 10W maximum output

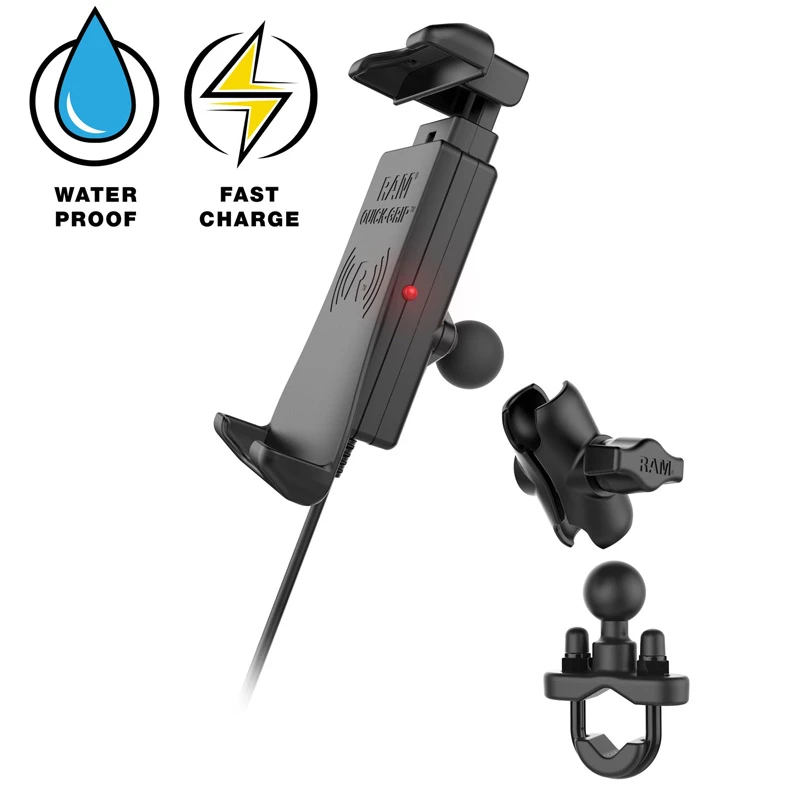

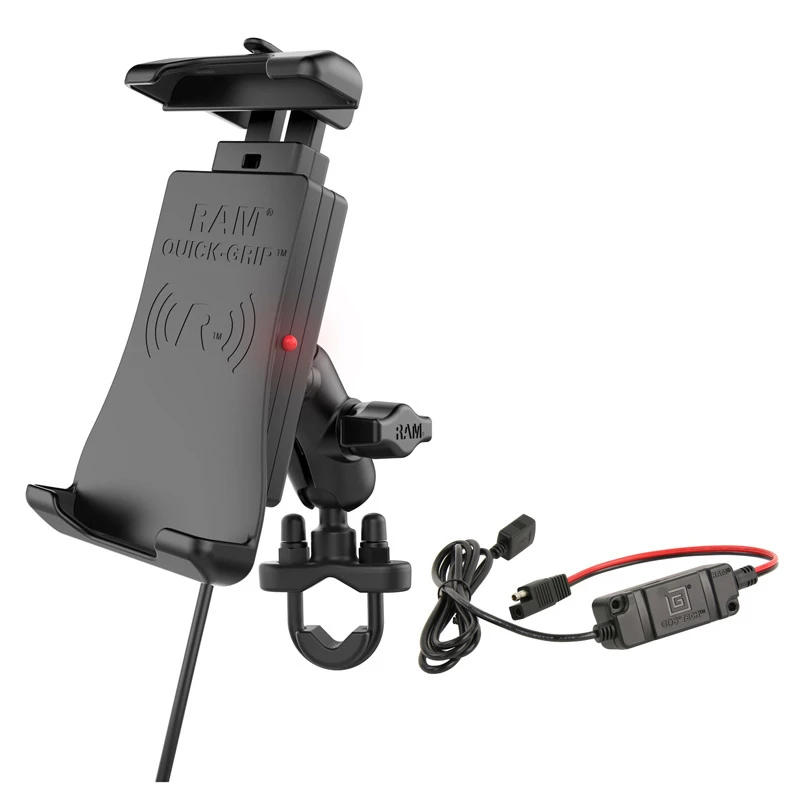

• Kit includes wireless charging cradle, B size diamond ball base, short double socket arm, U-bolt handlebar base, and hardwire charger
• Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
• RAM Mounts backed by lifetime warranty, RAM electronics backed by 1-year warranty with proof of purchase required
• CLAMP RANGE: .5″ – 1.25″ diameter
• SOCKET TO SOCKET LENGTH: 1.75″
• BALL SIZE: B Size (1″)
• PACKAGING TYPE: Retail Box
• INPUT CONNECTOR: USB Type-A Male
• INPUT CABLE LENGTH: 20″ with optional 1.2M extension cable
• OPERATING TEMPERATURE: 0°C to +37.7°C
• WARRANTY: 1 year warranty
• WEIGHT: 1.8 lb
• WEIGHT CAPACITY: Standard Use: 2 lbs, Heavy-Duty Use: 1 lb
• MATERIALS: Marine-grade aluminum, High strength composite, Stainless steel

• (1) Safety Tether
• (1) Silicon sleeve for USB waterproof connection

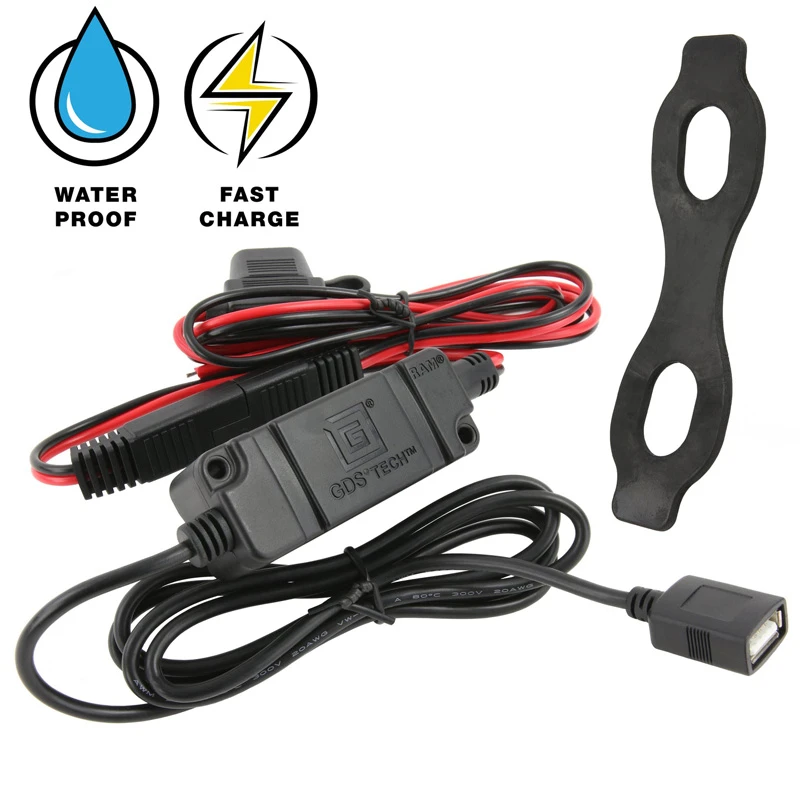

• (1) Hardwire Charger with Cable
• (4) Small zip ties
• (4) Large zip ties
• (1) 1/4″-20 U-Bolt for .5″ – 1″ Rails
• (1) 1/4″-20 U-Bolt for 1″ – 1.25″ Rails
• (2) 1/4″-20 Nylock Nuts
• (2) Rubber Caps
• (1) U-Bolt Spacer

Height Range: 5.625″ – 6.625″

Max Width: 3.125″

Max Depth: .7″

Input Power:5V-2A; 9V-1.67A

Output: 5W / 7.5W / 10W

Conversion Efficiency: 85% Max

Maximum Case Thickness: 6mm

Working Frequency: 110-205KHZ

Product Standard: WPC v.1.2.4

Qi Compatible

Compatible with QC2.0/QC3.0 power supplies

Over Voltage Protection

Short Circuit Protection

Reverse Polarity Protection

RoHS Compliance

WEEE Compliance

SAE J-1113-5 Load Dump (Transient Voltage)

Moisture Resistant

CE Certification

KC

e-Mark Certification

RCM Certification

FCC Certification
