Ram Mount’s RAM-B-400-A-UN12W-V7M RAM Tough-Charge Waterproof Wireless Charging Mount with Tough-Claw.

The RAM Tough-Charge with X-Grip Technology is the world’s first patented, universal waterproof wireless charging cradle for phones. Designed with spring-loaded RAM X-Grip Technology, this cradle features an ‘X’ design that expands and contracts to secure nearly any phone while taking advantage of Qi wireless phone charging. All four arms feature rubber-coated caps that hold your phone firmly in place, and the open design keeps buttons and switches accessible on the sides of phones. To insert your device, simply squeeze the arms on one side of the cradle and place your phone inside before releasing the arms. This Qi wireless charging cradle ensures your compatible phone charges no matter what position it’s placed at. For added security and peace of mind, a device tether is included that’s recommended for outdoor applications. In addition, a support leg can be adjusted to the ideal position or removed altogether. This RAM Tough-Charge with X-Grip Technology wireless charging kit includes a B size diamond base featuring a 1″ rubber ball, short length double socket arm, and a RAM Tough-Claw clamping base. With the RAM Tough-Claw base, you can easily attach the wireless phone charger to round, square, and odd-shaped rails and bars ranging from .625″ to 1.5″ in outer diameter. The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable. This kit includes a hardwire charger.

• Waterproof Qi compatible wireless phone charging cradle features spring-loaded RAM X-Grip technology and 10W maximum output

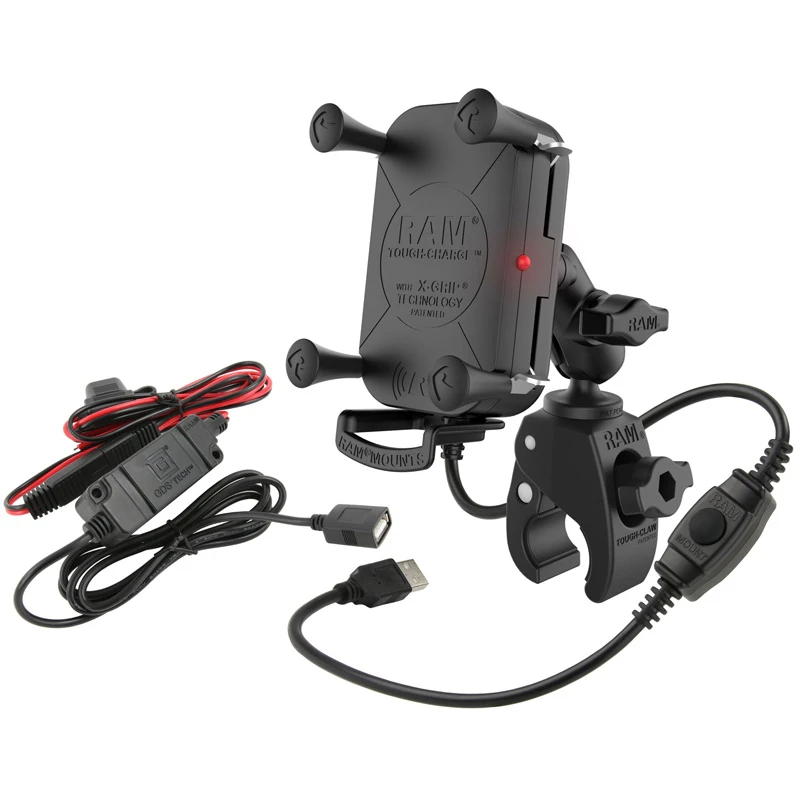

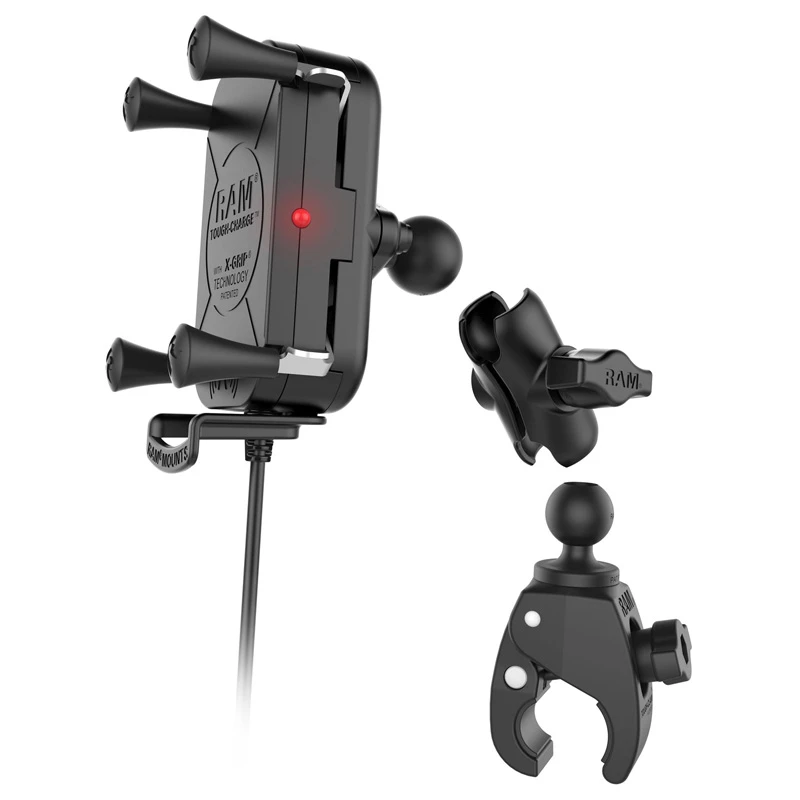

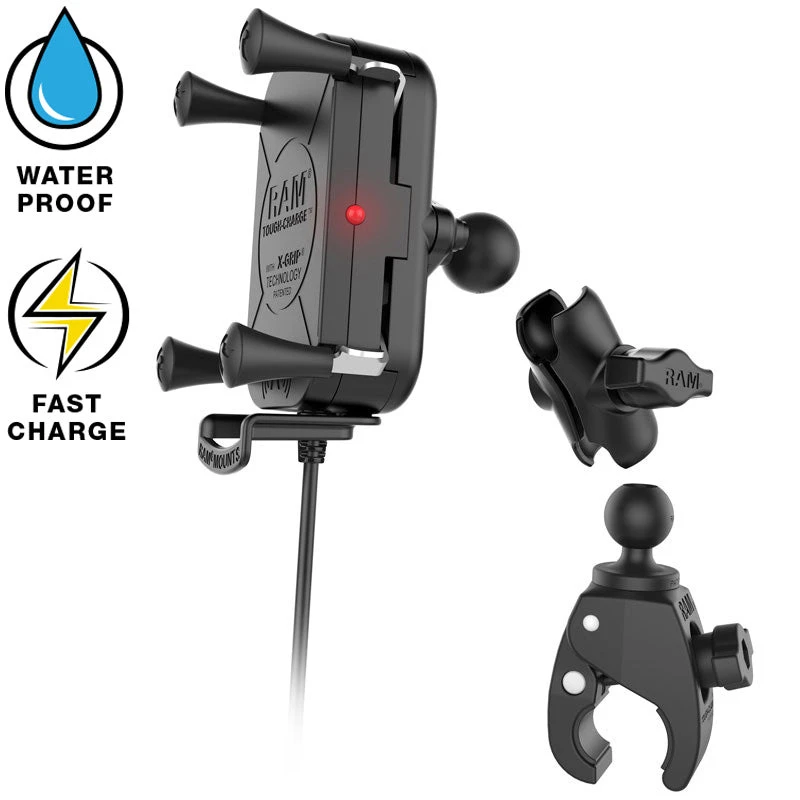

• Kit includes wireless charging cradle, B size diamond ball base, short double socket arm, RAM Tough-Claw clamping base, and hardwire charger
• Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
• RAM Mounts backed by lifetime warranty, RAM electronics backed by 1-year warranty with proof of purchase required
• MATERIALS: High strength composite, Stainless steel
• CLAMP RANGE: .625″ – 1.14″ diameter
• SOCKET TO SOCKET LENGTH: 1.75″
• BALL SIZE: B Size (1″)
• PACKAGING TYPE: Retail Box
• OPERATING TEMPERATURE: 0°C to +37.7°C
• WARRANTY: 1 year warranty
• WEIGHT: 1.85 lb

• (1) Safety Tether
• (1) Glue Tube for Rubber Caps
• (1) Cradle Leg
• (1) Cradle Leg Cover

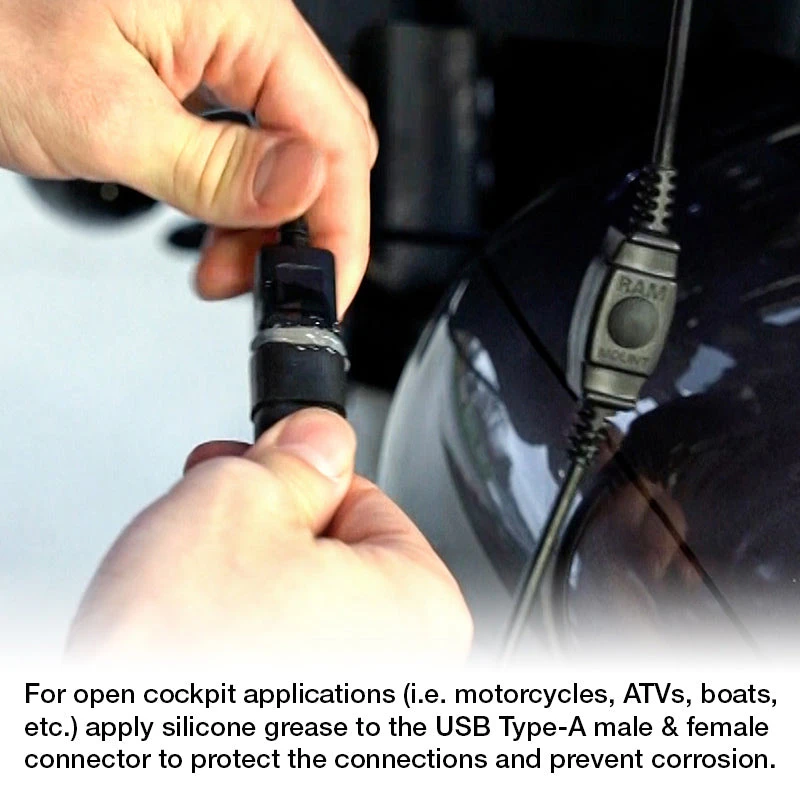

• (1) Silicon sleeve for USB waterproof connection

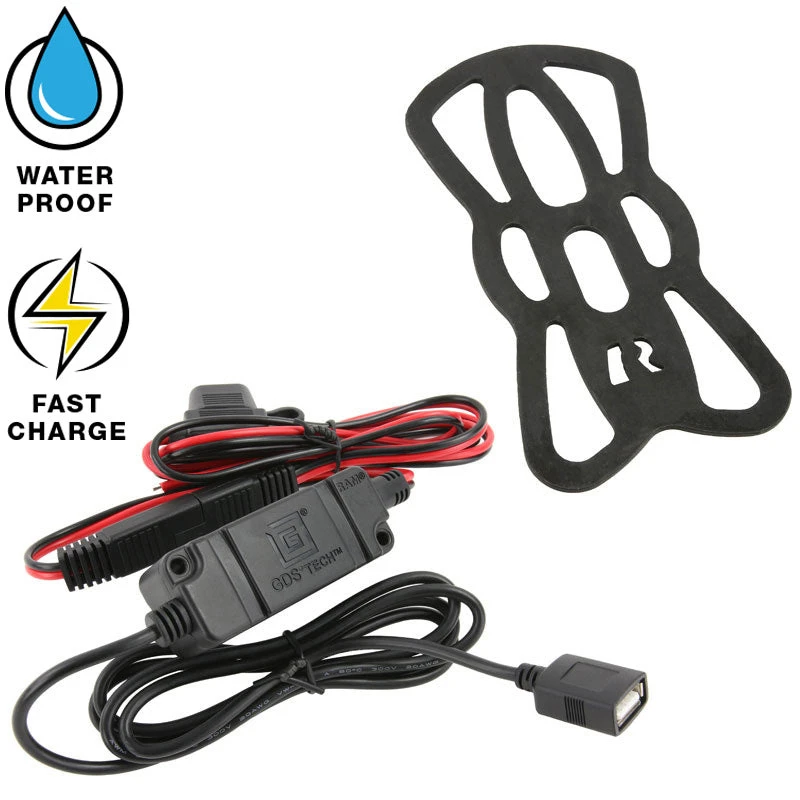

• (1) Hardwire Charger with Cable
• (4) Small zip ties
• (4) Large zip ties

Width Range: 2.375″ – 3.25″

Depth Range: .875″ max

Standard Use: 2 lbs

Heavy-Duty Use: 1 lb

Input Power:5V-2A; 9V-1.67A

Output: 5W / 7.5W / 10W

Conversion Efficiency: 85% Max

Maximum Case Thickness: 6mm

Working Frequency: 110-205KHZ

Product Standard: WPC v.1.2.4

QI Compatible

Compatible with QC2.0/QC3.0 power supplies

Over Voltage Protection

Short Circuit Protection

Reverse Polarity Protection

RoHS Compliance

WEEE Compliance

SAE J-1113-5 Load Dump (Transient Voltage)

Moisture Resistant

CE Certification

KC

e-Mark Certification

RCM Certification

FCC Certification
